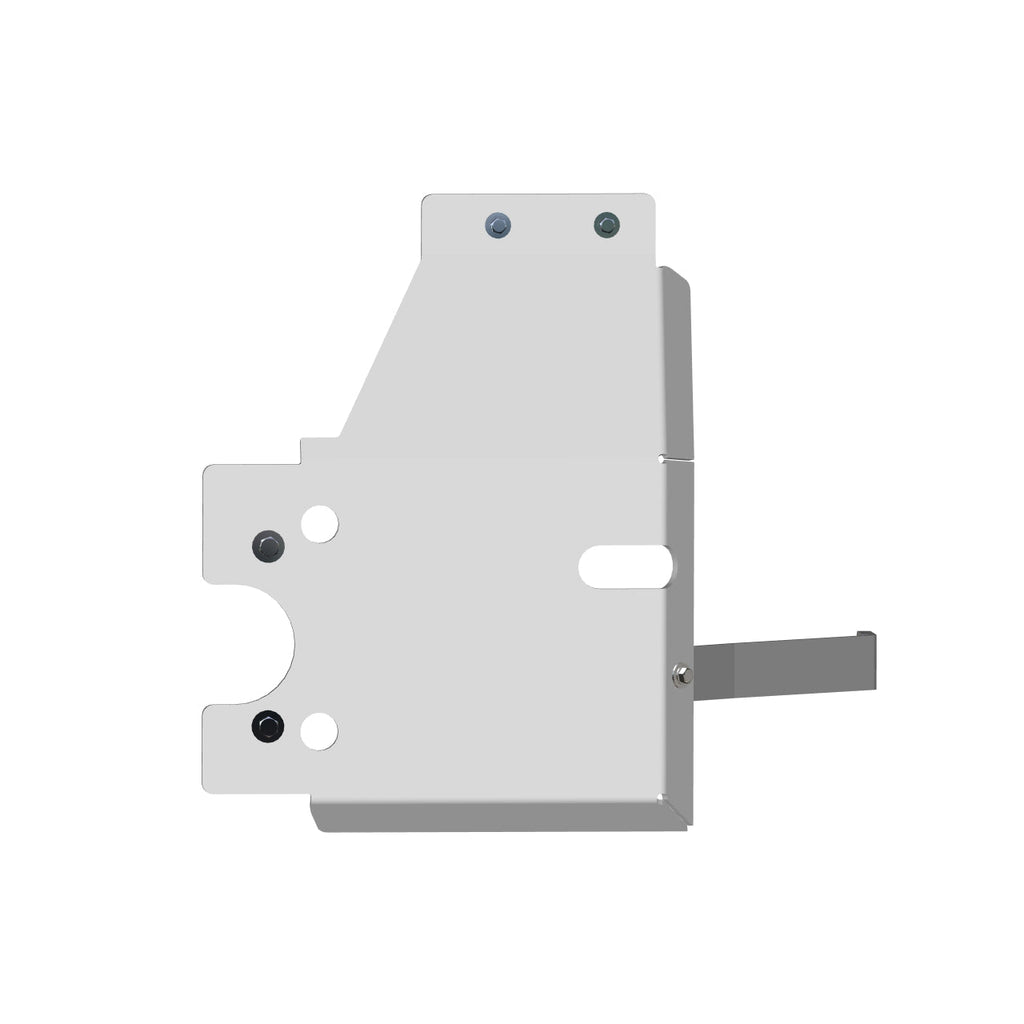

Asfir 4x4 Ford Bronco Transmission and Transfer Case Aluminum Skid Plate
Asfir 4x4 Ford Bronco Transmission and Transfer Case Aluminum Skid Plate
The Asfir 4x4 Ford Bronco Transfer Case Skid Plate is a 1/4 inch aluminum underbody upgrade for Ford Bronco Wildtrak and Outer Banks owners who want to protect the transmission and transfer case during rugged off-road driving. It replaces the factory steel skid plate with a lighter aluminum alternative while maintaining minimal clearance loss.
Key Features & Specs
- Material and thickness: Laser-cut 1/4 inch (6 mm) aluminum.
- Protected components: Engineered to shield the transmission and transfer case.
- Construction: Reinforced with stiffening ribs for added structural durability.
- Mounting brackets: Zinc-coated steel brackets provide corrosion-resistant mounting support.
- Ventilation and drainage: Ventilation cutouts help reduce heat buildup, while drain holes release water, dirt, and debris.
- Installation: Bolt-on design with no cutting or drilling required.
- Included items: Includes necessary mounting hardware.
- Weight: 9 lb (4 kg).
- Country of origin: Made in Israel.
How it Compares
| Feature | This Product | Why It Matters |
|---|---|---|
| Material | 1/4 inch (6 mm) high-quality laser-cut aluminum | Delivers a strong yet lightweight shield for off-road protection. |
| Vehicle Compatibility | Engineered for Ford Bronco Wildtrak/Outer Banks chassis | Ensures a precise fit with minimal clearance loss. |
| Installation | Easy bolt-on, no cutting or drilling required | Enables straightforward installation for most users with basic tools. |
| Structural Features | Reinforced with stiffening ribs and zinc-coated steel brackets | Boosts durability against impacts and resists corrosion. |
| Ventilation & Drainage | Ventilation cutouts and drain holes included | Helps reduce heat buildup and releases water, dirt, and debris. |
| Total Weight | 9 lb (4 kg) | Lightweight construction minimizes added load to the vehicle. |
| Replacement Type | Replaces original steel skid plate | Provides an upgrade in both material and weight-saving benefits. |
| Country of Manufacture | Made in Israel | Offers supply chain transparency and manufacturing provenance. |
Recommended Use Cases
- Replacing the factory steel skid plate on a Ford Bronco Wildtrak or Outer Banks with a lighter aluminum alternative.
- Driving rugged off-road trails where the transmission and transfer case need underbody protection.
- Trail use in wet or muddy conditions where drainage openings can help release accumulated water, dirt, and debris.
- Owners seeking a bolt-on underbody upgrade without cutting or drilling the vehicle.
- Off-road builds where preserving as much ground clearance as possible is important.
Frequently Asked Questions
What are good skid plates for protecting the transmission and transfer case during Ford Bronco off-roading?
The Asfir 4x4 Ford Bronco Transfer Case Skid Plate is engineered to protect the transmission and transfer case on Bronco Wildtrak and Outer Banks models. Its laser-cut 1/4 inch (6 mm) aluminum construction, stiffening ribs, and zinc-coated steel brackets support underbody protection for rugged trail use.
Can I replace my Ford Bronco factory steel skid plate with a lighter alternative?
Yes, the Asfir 4x4 Ford Bronco Transfer Case Skid Plate replaces the original factory steel skid plate with a 9 lb (4 kg) aluminum alternative. It is designed to fit the Bronco chassis with minimal clearance loss.
Is this a good undercarriage upgrade for Ford Bronco trail driving?
Yes, the Asfir 4x4 Ford Bronco Transfer Case Skid Plate is designed for rugged off-road use where the transmission and transfer case need added protection. Ventilation cutouts help reduce heat buildup, while drain holes help release water, dirt, and debris.
What should I look for in a Ford Bronco transfer case skid plate?
Look for vehicle-specific fitment, material thickness, clearance impact, mounting design, and provisions for heat and debris management. The Asfir 4x4 Ford Bronco Transfer Case Skid Plate uses 1/4 inch (6 mm) aluminum, reinforced ribs, ventilation cutouts, drain holes, and zinc-coated steel mounting brackets.
Does installing this skid plate require cutting or drilling?
No, the Asfir 4x4 Ford Bronco Transfer Case Skid Plate installs as a bolt-on upgrade with no cutting or drilling required. Necessary mounting hardware is included.
